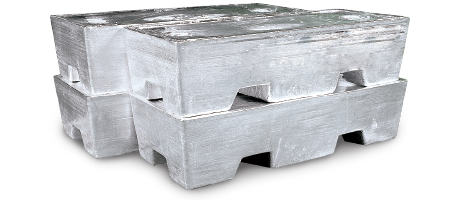

Special High Grade Zinc Slab Ingot (고순도 아연괴)
| Specification (%) |
| Zn |
99.9950 Min |
| Pb |
0.0030 Max |
| Cd |
0.0020 Max |
| Fe |
0.0010 Max |
| Cu |
0.0010 Max |
| Sn |
0.0010 Max |
| Form & Packing |
| Slab Mass (kg) |
25 ± 1.25 |
| Slab Dimension (mm) |
430/440 x 210/220w x 40 |
| Bundle Mass (kg) |
1.000 ± 50 |
| Bundle Dimensions (mm) |
900 x 450 x 455 |
| Slabs per Bundle |
40 |
Zinc Alloy Jumbo Block (합금점보 아연괴)
| Form & Packing |
| Dimensions(mm) |
Length |
1.255/1.180 |
| Width |
510/460 |
| Height |
300 |
| Weight(kg) |
|
1.050±50 |
Special High Grade Zinc Jumbo Block (순수점보 아연괴)
| Form & Packing |
| Dimensions (mm) |
Length |
1,255 / 1,180 |
| Width |
510 / 460 |
| Height |
300 |
| Weight (kg) |
|
1,050 ± 50 |
Zinc Anode Ingot (양극 아연괴)
| Specification (%) |
| Zn |
99.9950 Min |
| Pb |
0.0030 Max |
| Cd |
0.0020 Max |
| Fe |
0.0010 Max |
| Cu |
0.0010 Max |
| Sn |
0.0010 Max |
| Al |
0.0010 Max |
| Form & Packing |
| Slab Mass (kg) |
8 ± 0.5 |
| Slab Dimension (mm) |
95 / 115 x 420 / 460 x 30 |
| Bundle Mass (kg) |
960 ± 60 |
| Bundle Dimensions (mm) |
460 x 920 x 520 |
| Slabs per Bundle |
Regular slab |
112 |
| Foot Slab |
8 kg x 8 |
Zinc Diecast Ingot (D/C 아연괴)
| Specification (%) |
| Al |
3.9 ~ 4.2 |
| Mg |
0.04 ~ 0.05 |
| Cu |
≤ 0.0012 |
| Pb |
≤ 0.0030 |
| Fe |
≤ 0.0050 |
| Cd |
≤ 0.0010 |
| Sn |
≤ 0.0010 |
| Zn |
Remainder |
| Si |
≤ 0.0200 |
| Ni |
≤ 0.0010 |
| Form & Packing (Alloy For Die Casting) |
| Slab Mass (kg) |
8 ± 0.5 |
| Slab Dimension (mm) |
95 / 115 x 420 / 460 x 30 |
| Bundle Mass (kg) |
960 ± 60 |
| Bundle Dimensions (mm) |
460 x 920 x 520 |
| Slabs per Bundle |
Regular slab |
112 |
| Foot Slab |
8 kg x 8 |
